Display Touch Remover Machine by WillDone
Product details of the display touch remover machine
Quick Overview
WillDone display touch remover machine is made from raw materials with good properties and strong durability. The quality of this product is carefully checked by the quality testing department. WillDone's display touch remover machine is widely used in many industries. WillDone is able to produce display touch remover machine with bulk production to ensure the business efficiency.
Product Introduction
Compared with similar products, our company's display touch remover machine has the following outstanding features.
Related Parameters
| Model | Willdone 503 |
| Device power supply | AC 220V |
| Equipment power | 800W |
| Processing efficiency | 10~15s/Pcs |
| Suitable for products | 2.4~7.0 inches |
| LCD platform | 182*180mm |
| Hot pressing accuracy | ±5um |
| Working air source | 0.2~0.6Mpa |
| Repair brands | Huawei, Apple, Xiaomi, Samsung, OPPO, VIVO, etc. |
| Blade size | 54*1.5mm/64*0.6mm |
Description
1. Display flex cable under cutter head (pressure / temperature / time): 2.85mpa/250°C/11S (260-280°C is recommended to be adjusted according to the actual situation in cold areas); Teflon is used.
2. Touch flex cable under cutter head (pressure / temperature / time): 2.0mpa/230°C/11S (240-245°C is recommended to be adjusted according to the actual situation in cold areas); Teflon is used.
3. Android Phones screen yellow flex cable under cutter head (pressure / temperature / time): 2.85mpa / 250 °C / 12S (260-280 °C is recommended to adjust according to the actual situation in cold areas); Silicone skin is used.
4. Apple iPhone screen black flex cable under cutter head (pressure / temperature / time): 2.5mpa/250 °C / 11S (260-280 °C is recommended to adjust according to the actual situation in cold areas); Silicone skin is used.
5. Apple COP screen flex cable under cutter head (pressure / temperature / time): 2.85mpa/250°C/11S (260-280°C is recommended for cold areas to adjust according to the actual situation); Teflon is used.
Product Advantages
Features
1. Products cover a wide range of industries, including medical equipment, energy vehicles, and communication modules waiting for industry, ACF, COF, and other processes.

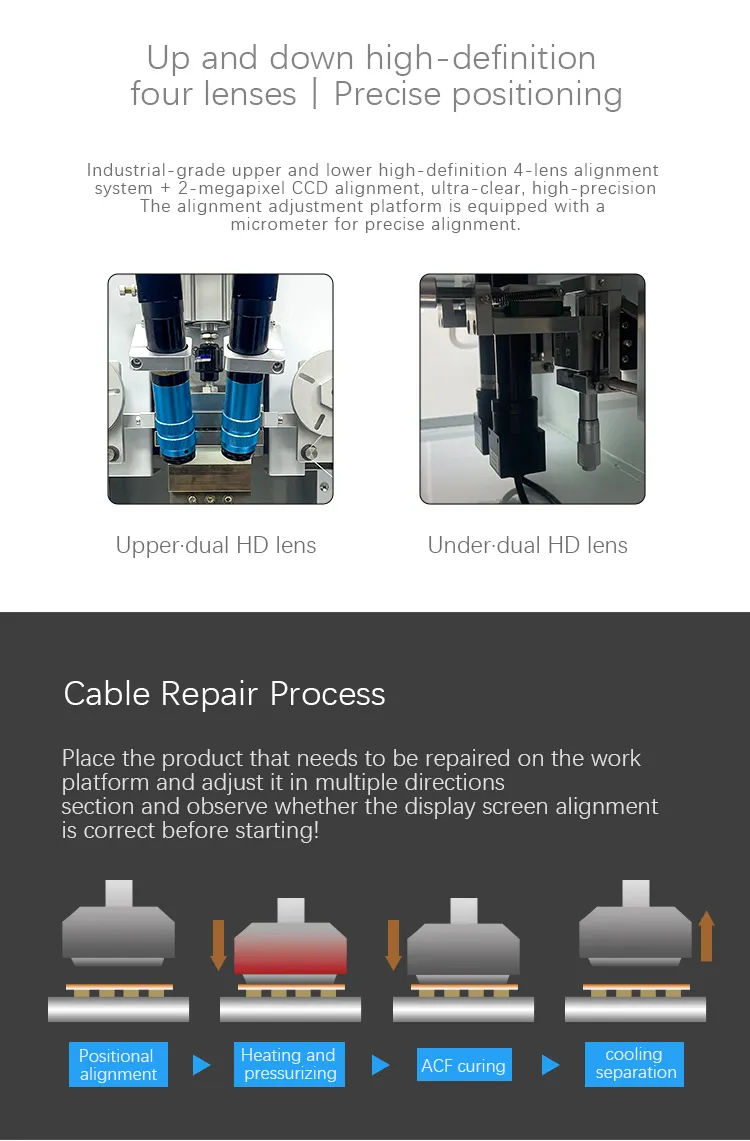

2. HD footage Upper and lower HD alignment lens 2 million pixels CCD, super clear alignment.
3. Micrometer, flexible micrometer alignment LCD and cable arrangement.
4. You can adjust the LCD and cables up, down, left, and right, it can be vacuum adsorbed in any position.
5. PLC intelligent touch screen can control pressure and discharge time, temperature, and tape transport. etc, simple and precise settings.
6. Teflon belt automatically rotates to free your hands. Lead oxide material is durable and protects the blade with burn-proof cable.
7. Most accessories are imported configurations, simple operation buttons are clear at a glance, and more convenient to operate.
Product Details
