Esd Tools by WillDone
Product details of the esd tools
Product Introduction
esd tools offers exceptional performance to meet the evolving application needs of markets. The product has withstood the strict performance testings. As one of the leading esd tools supplier, WillDone supplies the best esd tools for customers.
Typical Specifications
|
Power Source |
AC220V/110V |
Count Speed |
6000PCS /15minutes |
|
Rated Power |
30W |
Count Range |
From -99999 to 99999pcs |
|
Machine Measurement |
L350*W774*H184 mm |
Weight |
10kg |
|
Applicative Tape Diameter |
Every type of SMD tape is ok |
Pctch |
2.4.8.10.12.16.32.44.56mm |
|
Applicative Tape Width |
8,12,16,24,32,44,56mm |
Packaging Detail |
Carton and within foam plastics. |
|
Speed Adjustment |
Press the "TIME/LOSS" button to chang the speed:H(high),M(middle),L(low). |
Description

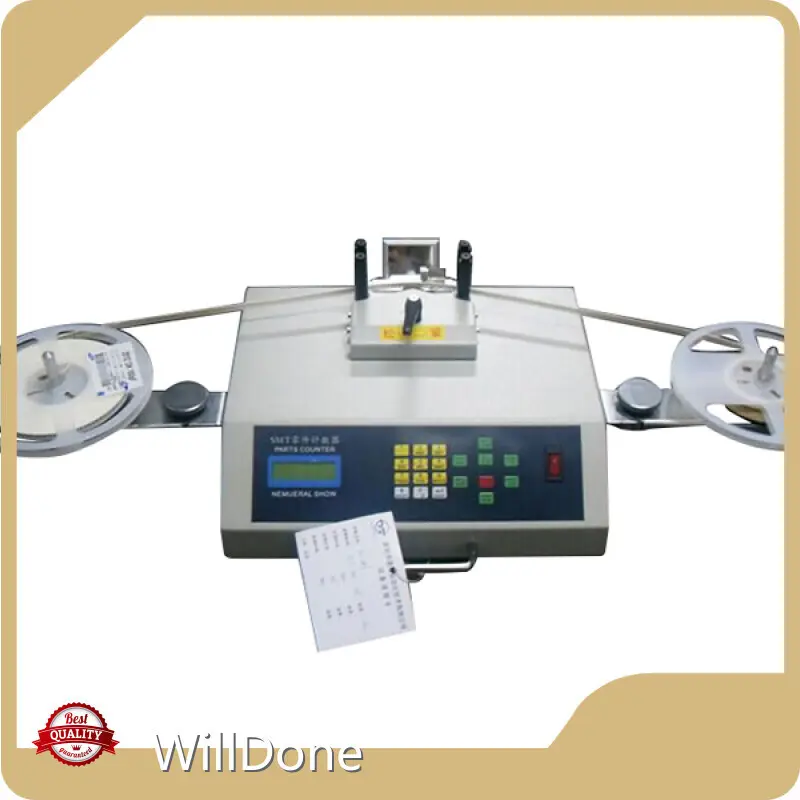

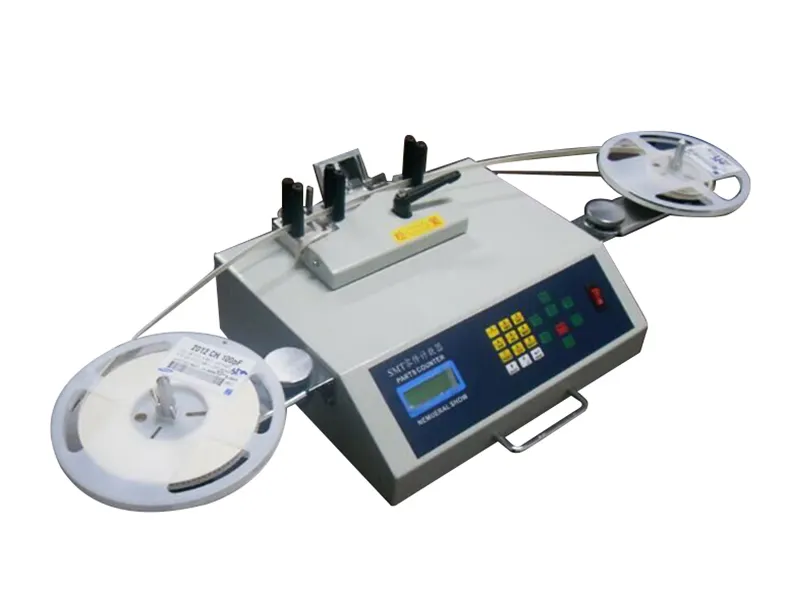

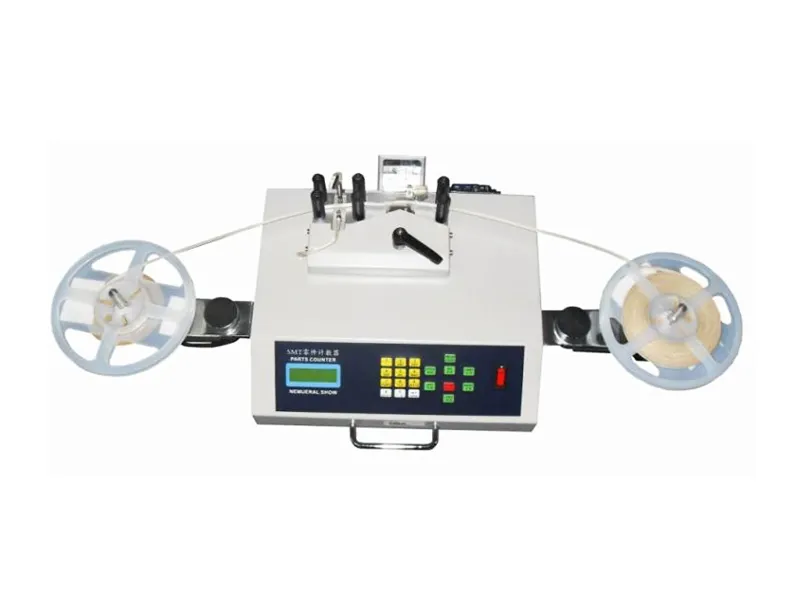

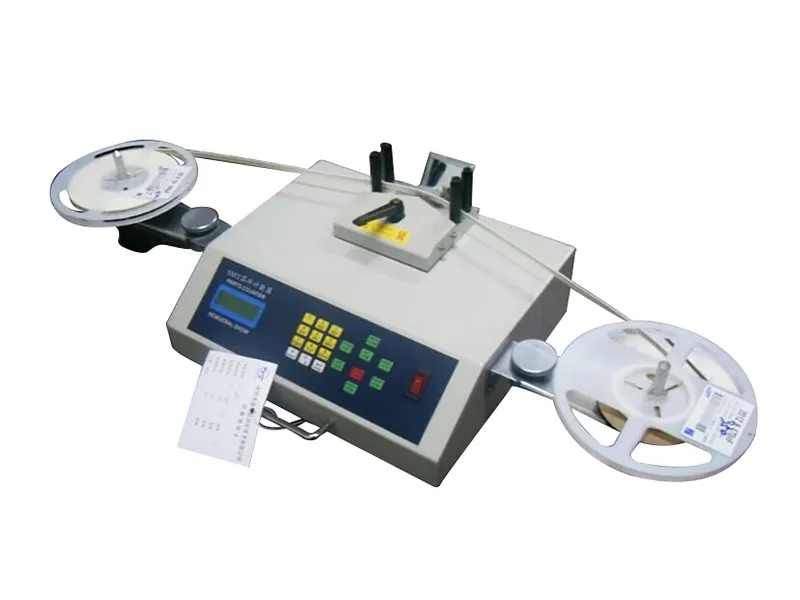

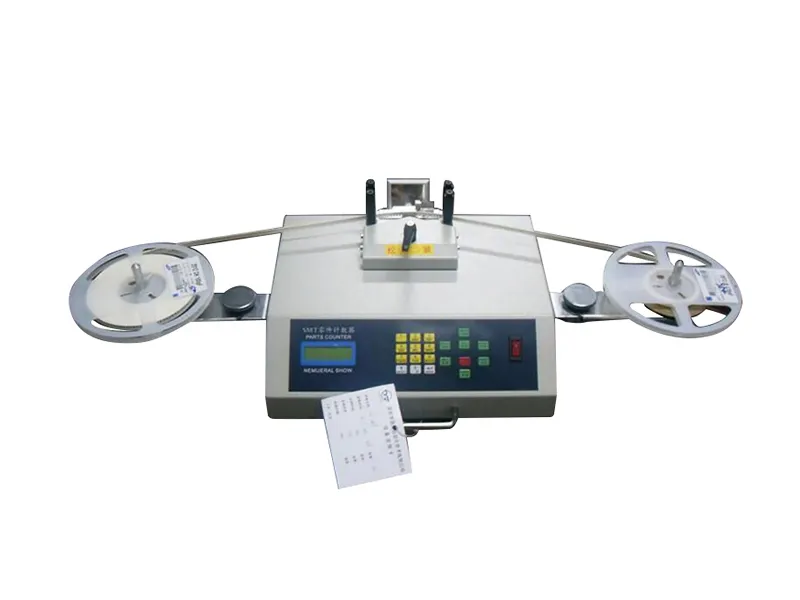

[PROFESSIONAL PARTS COUNTER] The SMT/SMD components counter adopts the principle of photoelectric sensing, and uses the corresponding relation between the guide hole and the part, through the special-purpose processing chip and the large-scale centralized circuit processing to realize less error, accurately measure the number of SMD parts, can realize the convenient and quick count. It is an efficient auxiliary equipment for SMT material management.
[QUALITY MATERIALS] Our automatic counting machine is made of high-quality aluminum and steel plus powder coating process, anti-corrosion and rust-proof, keeping excellent function for a long service life. The 3-digit LCD display makes it easy to observe the process and status of dispensing while the high-precision motherboard control and intelligent control panel allow you to set the count, pitch, time, forward and reverse rotation, leak detection, which is very convenient.
[HIGH EFFICIENCY WORKING] The efficient and powerful motor help you automatically calculate the number of parts and simplify the part-feeding process. You can choose to set the number of parts manually or use the automatic mode, and also you can choose at will among three speeds: high speed, medium speed, and low speed to improve the efficiency of the counting.
[ACCURATE COUNTING] The CNC cutting gears are more accurate, and the alignment fiber optic leak detection device can accurately measure the number of parts using the correspondence between the guide holes and the parts. Also, the machine will automatically stop when it is empty, making it safe for you to operate. It does not require complicated assembly, while the complete accessories and detailed instructions help you to complete the installation and start using it quickly.
[HUMANIZED DESIGNS] The interface on the back allows you to connect a printer(not included) or a scan gun (not included) for easy assembly line operation and product quantity and quality management. The auxiliary rod in front of the control panel helps you to make the machine stable without shaking and assists you to apply better force. The mirror helps the fiber optic detector to receive the signal better, and also facilitates you to observe the status of the point material.
Function Information
Features
Quality Materials: High-quality aluminum and steel plus powder coating process make it sturdy and stable, anti-corrosion and rust-proof, keeping excellent function for a long time.
Powerful Motor: The 25W efficient and powerful motor help you automatically calculate the number of parts and simplify the part-feeding process.
Accurate Counting: The CNC cutting gears are more accurate, and the alignment fiber optic leak detection device can accurately measure the number of parts using the correspondence between the guide holes and the parts.
Automatically Stop: The machine will automatically stop when it is empty, making it safe for you to operate.
Multiple Adjustment: You can choose to set the number of parts manually or use the automatic mode, and also you can choose at will among three speeds: high speed, medium speed, and low speed to improve the efficiency of the counting.
Product Details
