Wholesale Pcb V Cut Machine WillDone Brand
Product details of the pcb v cut machine
Quick Overview
Complete models of pcb v cut machine are available with high quality. The product has excellent performance and stable and reliable quality. The pcb v cut machine of WillDone can be used in many industries. We have become able to make the delivery of the products at our customers’ end within the stipulated time frame by our efficient transport facility.
Product Information
WillDone pays great attention to details. And the details of pcb v cut machine are as follows.
Related Parameters
|
Power |
110/220V 50/60HZ,250w |
PCB Thickness |
From 0.2 to 3.2mm |
|
PCB Length |
From 0.1-400mm |
V-Groove Thickness |
From 0.2-2.0 |
|
Cut Speed |
300mm/s or 500mm/s |
Net Weight |
75KG |
|
Outer Size |
L740*W550*H460 mm |

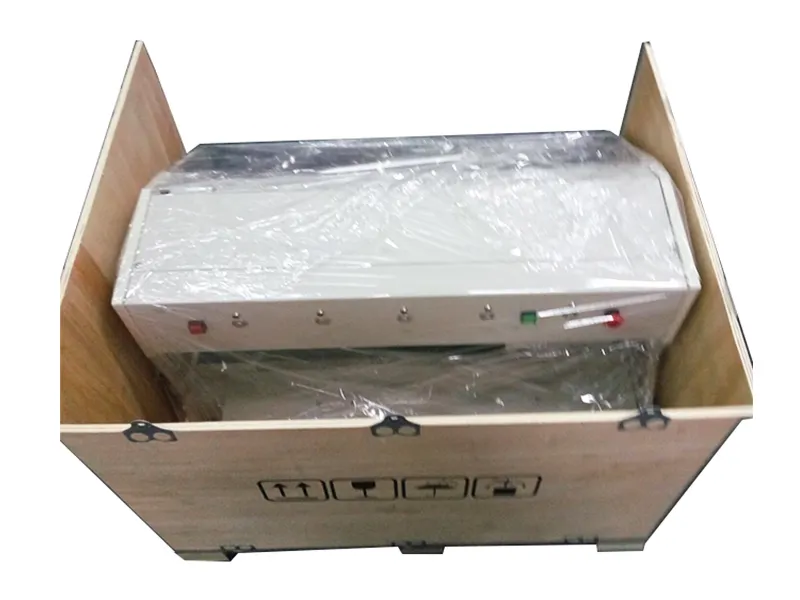

Packaging Detail |
wooden case |
|
Separating Machine Models |
YS-805A,YS-805B,YS-805C,YS-805D |
Difference |
Separating machine knife length |
Characteristic
1. Adjustable separating speed: 500mm/s or 300mm/s
2. Minimum Cutting length:400mm(YS805A), Maximun cutting length:1300mm(YS-805D)
3. Upper circular blade can be adjustable 0-2mm.
4. Operation platform is adjustable 0-50mm.
5. Cutting thickness: 0.2-3.2mm, V-cut thickness: 0.2-2.0mm
6. The machine cut PCB boards without damaging electronic components. And it can improve efficiency.
7. With blade moving, it can reduce pressure on board to avoid solder joint crack and parts fracture.
8. Upper circular blade cuts against lower linear blade to separate PCB board, smooth and clear cuts.
9. Set fixed start and end point for blade moving according to the length of PCB.
10. According to the width of PCB, the back baffle can be adjustable from 0 to 150mm.
11. The blades are sharp and indurable. And they can be sharpened between 3 and 5 times.
12. Assemble light curtain system on the end of the lower blade for your option.If there is anything beyond the safe line,pcb separator will stop,which provides safety protection
Product Advantages
How To Choose A Suitable Separating Machine?
According to the PCB length, you can choose a suitable machine model.

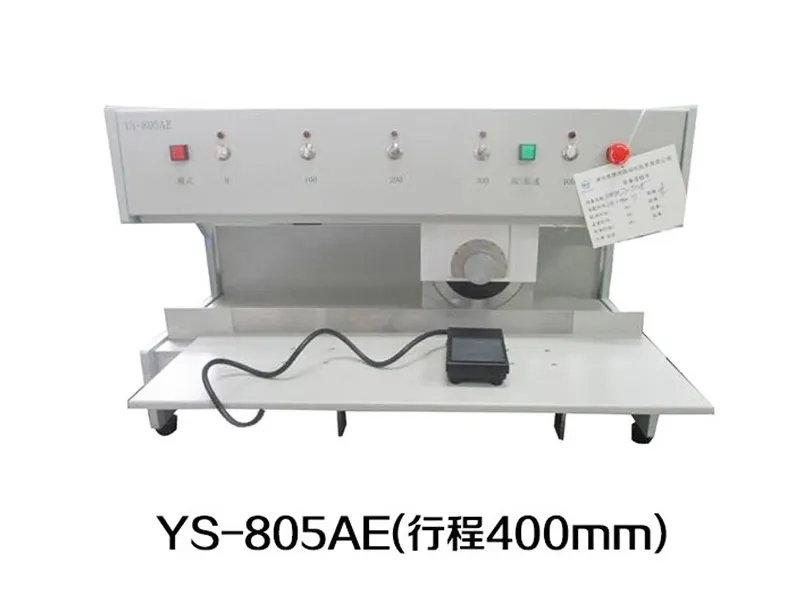

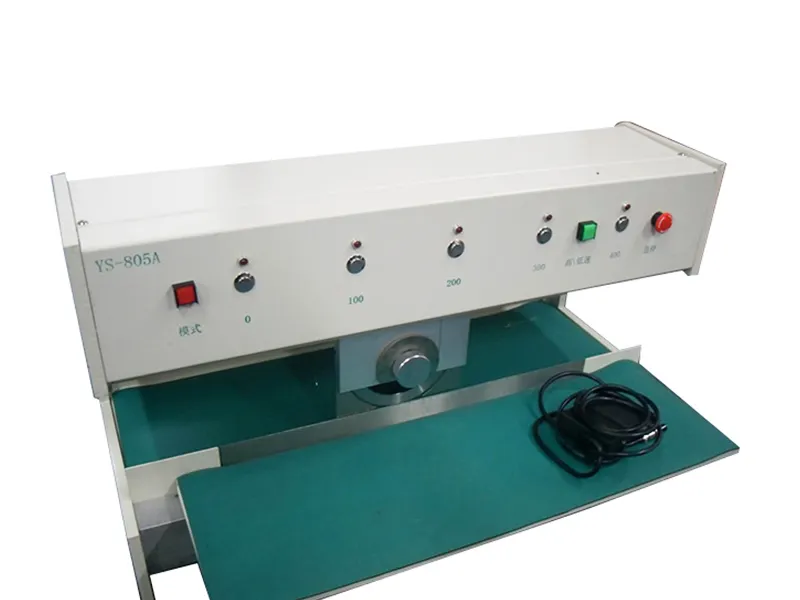

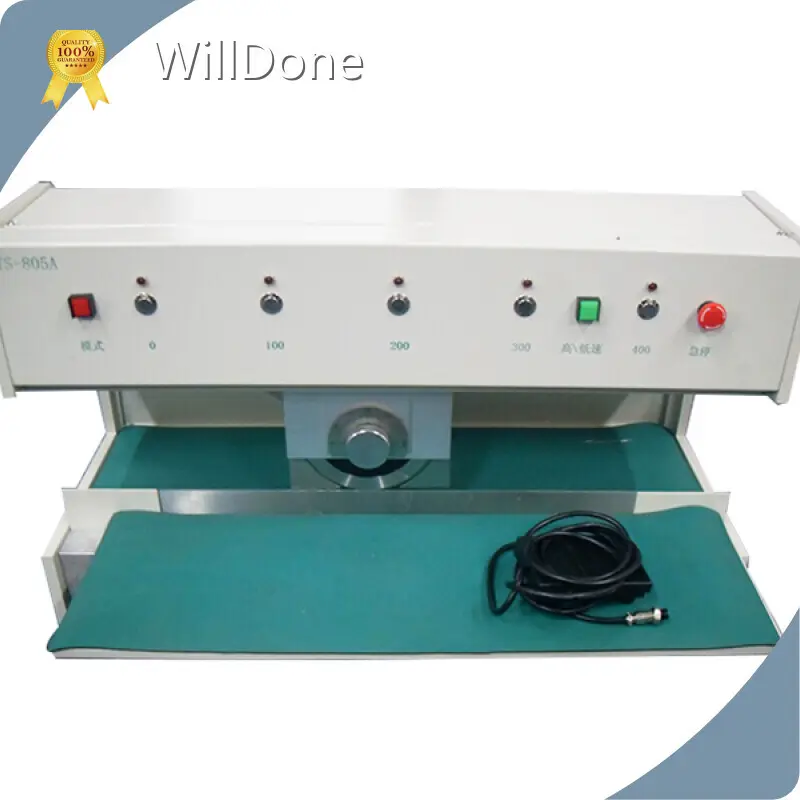

For cutting PCB that is shorter than 430mm, YS-805A is enough.

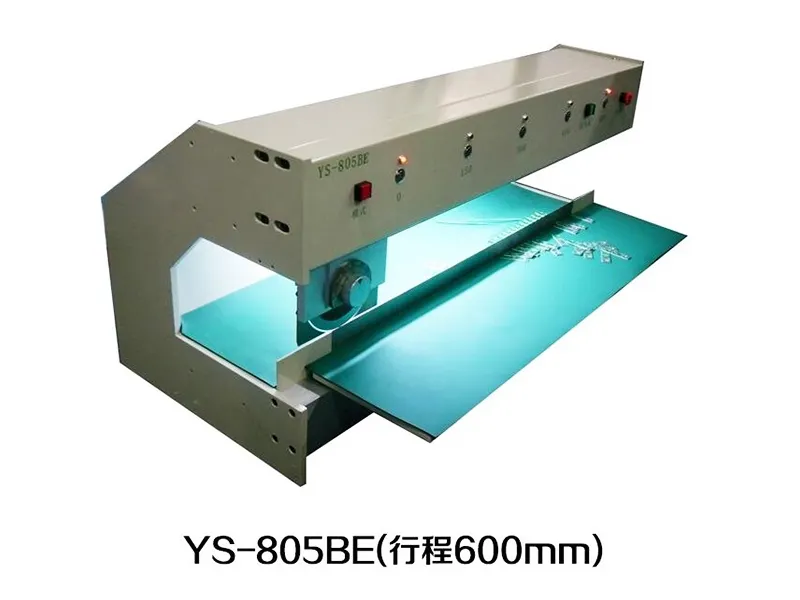

For cutting PCB that is shorter than 630mm, YS-805B is OK.

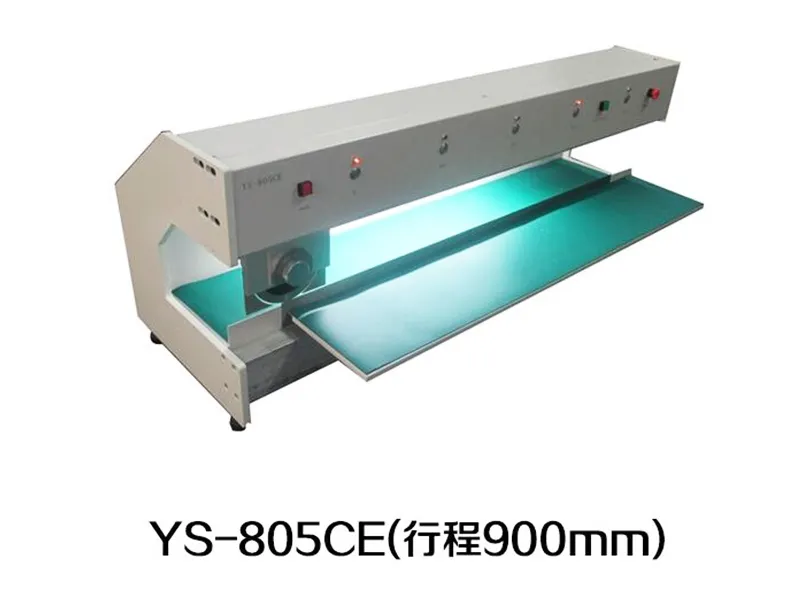

For cutting PCB that is shorter than 900mm, YS-805C is OK.

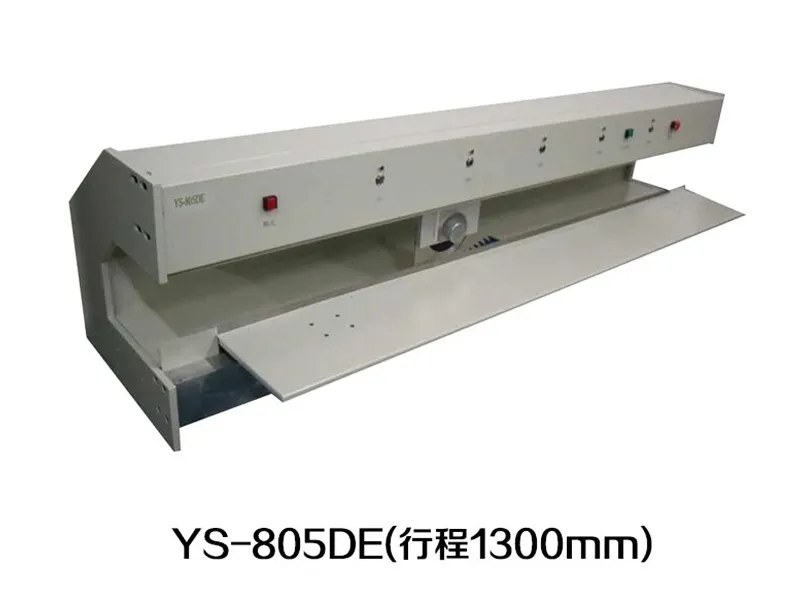

For cutting PCB that is shorter than 1300mm, YS-805D is OK.
Warranty
Three years for the pc board
One year for the machine
Knife can be shaped for free in a year
Lifelong maintenance
