Willdone Is A Leading Mobile Phone Repair Machine & Industrial Machine Supplier With 16 Years' Experience.
WholesaleWillDone Pcb Separator Machine -

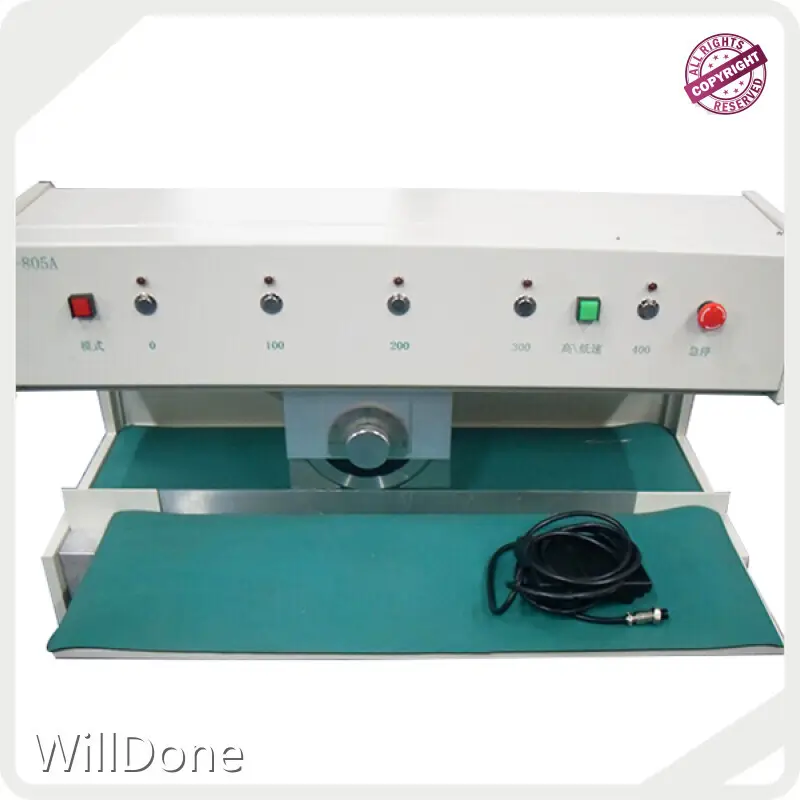

Product details of the pcb separator machine
Product Overview
It is pcb separator machine that helps gain the popularity among the market. The product is tested to be of the highest quality again and again. Complete and advanced production lines better ensure the high efficiency in WillDone to provide high-quality pcb separator machine.
Product Description
Compared with the pcb separator machine of our peers, the pcb separator machine we produce is provided with the following advantages.
Related Parameters
|
Power |
110/220V 50/60HZ,250w |
PCB Thickness |
From 0.2 to 3.2mm |
|
PCB Length |
From 0.1-400mm |
V-Groove Thickness |
From 0.2-2.0 |
|
Cut Speed |
300mm/s or 500mm/s |
Net Weight |
75KG |
|
Outer Size |
L740*W550*H460 mm |
Packaging Detail |
wooden case |
|
Separating Machine Models |
YS-805A,YS-805B,YS-805C,YS-805D |
Difference |
Separating machine knife length |
Characteristic
1. Adjustable separating speed: 500mm/s or 300mm/s
2. Minimum Cutting length:400mm(YS805A), Maximun cutting length:1300mm(YS-805D)
3. Upper circular blade can be adjustable 0-2mm.
4. Operation platform is adjustable 0-50mm.
5. Cutting thickness: 0.2-3.2mm, V-cut thickness: 0.2-2.0mm
6. The machine cut PCB boards without damaging electronic components. And it can improve efficiency.
7. With blade moving, it can reduce pressure on board to avoid solder joint crack and parts fracture.
8. Upper circular blade cuts against lower linear blade to separate PCB board, smooth and clear cuts.
9. Set fixed start and end point for blade moving according to the length of PCB.
10. According to the width of PCB, the back baffle can be adjustable from 0 to 150mm.
11. The blades are sharp and indurable. And they can be sharpened between 3 and 5 times.
12. Assemble light curtain system on the end of the lower blade for your option.If there is anything beyond the safe line,pcb separator will stop,which provides safety protection
Product Advantages
How To Choose A Suitable Separating Machine?
According to the PCB length, you can choose a suitable machine model.
For cutting PCB that is shorter than 430mm, YS-805A is enough.
For cutting PCB that is shorter than 630mm, YS-805B is OK.
For cutting PCB that is shorter than 900mm, YS-805C is OK.
For cutting PCB that is shorter than 1300mm, YS-805D is OK.
Warranty
Three years for the pc board
One year for the machine
Knife can be shaped for free in a year
Lifelong maintenance
Product Details
Company Introduction
Over the years, Shenzhen Willdone Technology Co. LTD has been standing firmly in the market. We are known for offering professional pcb separator machine customization services. We employ a group of ambitious and expert R&D staff. They have developed a customer database that helps them gain knowledge of target customers and product trends in the pcb separator machine industry. We are fully committed to continuously challenging ourselves through improved service methods and strive to achieve our customers' goals. Welcome to visit our factory!
Look forward to inquiries from customers in various industries
