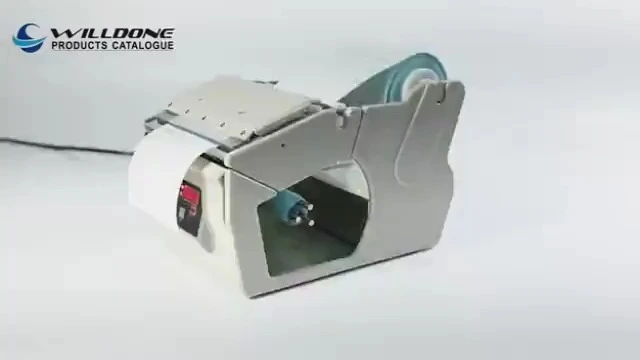

Willdone X-180 Automatic Label Dispenser Electric Label Peeling Machine For Packaging Industry
1) Ideal for small labels and small work areas
2) Will dispense label and die-cut parts
3) Photosensor Accuracy and Reliability
4) Automatically removes paper,vinyl,acetate,polyester,foil,etc.from its liner
Related Parameters
| Brand | Willdone | Model | X-180 |
| Available Label Width | 5-180mm | Feed Speed | 130mm/sec (speed adjustable) |
| Roll Capacity | 250mm | Color | grey |
| Product Size | 206 (W)x 174(H) x 280(L)mm | Lable Material | Any material can be used |
Description
1) Ideal for small labels and small work areas
2) Will dispense label and die-cut parts
3) Photosensor Accuracy and Reliability
4) Automatically removes paper,vinyl,acetate,polyester,foil,etc.from its liner
5) Automatically rewinds liner scrap for acleaner working environment
6) No tools required for adjusting to different size labels
7) No maintenance required
8) High torque motor for large diameter label rolls
9) Feature:LCD counter can show how many labels has been dispensed
Use Instruction
Wrapped the Lable on the hanging board as the picture shows and fix with positioning plate.
Insert the guide plate,then insert the label into between the label delivery board and the middle stick,shows U shape shape,then adjust the guide board according to the label width.
Please hange the label into the roll paper device,open the upper device and put the label into the 3 sticks of roll paper device.
Close the Interlock lever,press the paper press plate button till hear the clocked alarming.
Open the power switch which behind right direction.
When the machine in stripping labels,please get the labels from the buttom up.
